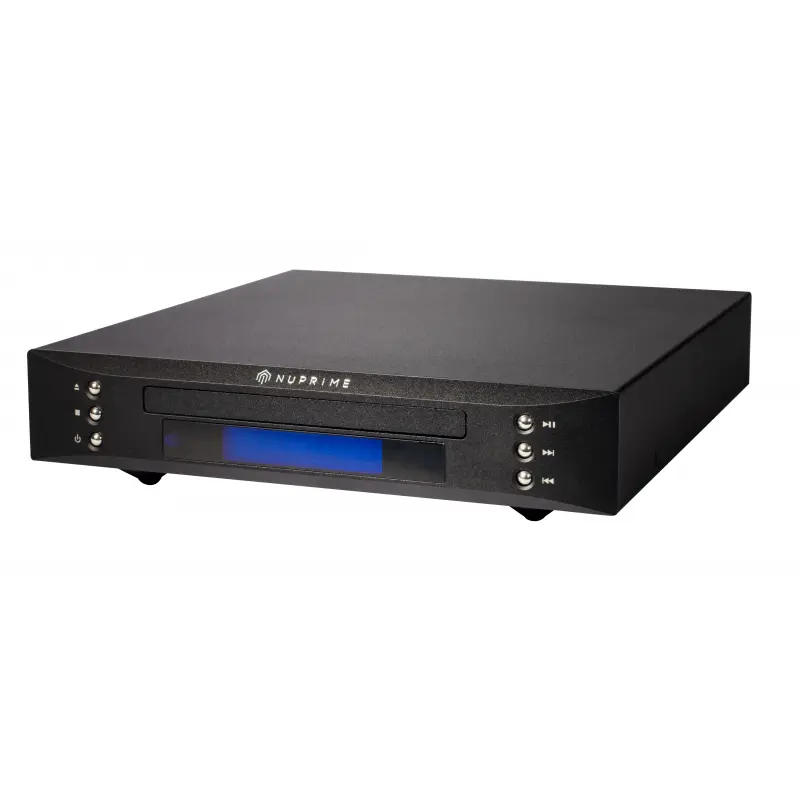

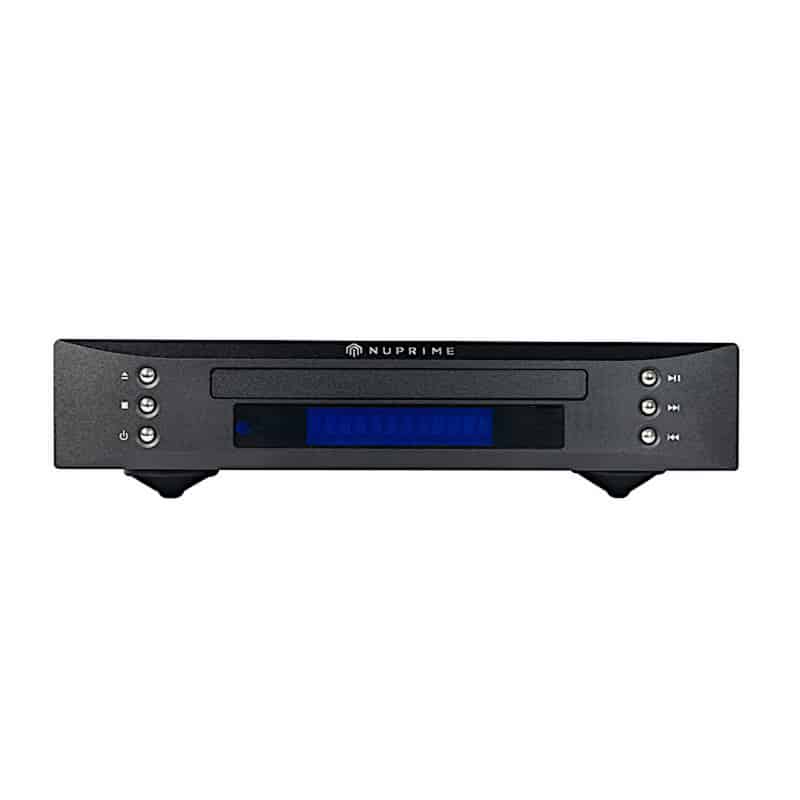

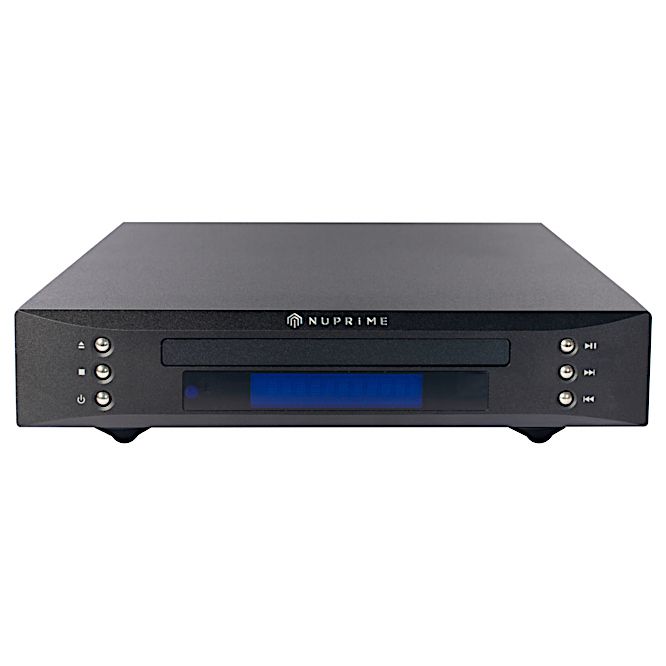

Nuprime CDT-9

Reproduccion de CD Altamente Precisa

• Un poderoso chip ARM LPC2103F CD lee, escribe y controla los errores corrigiendolos
• Philips SAA7824HL high-end laser reads/writes head controla y decodifica los chips para el transporte.
• El Algoritmo reduce las interferencias digitales resultando en un extremadamente bajo jitter
• Salida Coaxial con transformador con aislamiento dedicado
• Bajo nivel de salida de  jitter I2S para uso profesional

Convertidor de Muestreo de Frecuencia

• The sampling rate of CD playback can be up sampled to PCM and DSD, from 44.1kHz to 768kHz or DoP256
• The conversion is achieved by up-sampling to mega hertz before down converting to the targeted sampling rate with ultra-low jitter and distortion

Power and Mechanical

• Custom R-type professional transformer with shielding
• Low power consumption in Standby Mode•
• NuPrime vibration-free isolation feet
• High quality aluminium remote control
• Available in black or silver anodized aluminum finish
• External AC adapter included
• Bundled with LPS-212 for $1495 (recommended option)

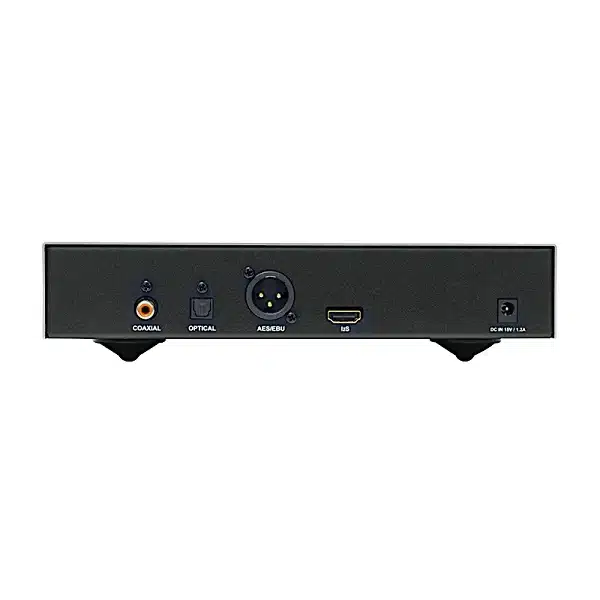

Outputs:

• Optical Output  (up to 24  bits  /  192 kHz) (DoP64)
• Coaxial Output  (up to 24 bits  /  768KHz) (DoP256)
• HDMI I2S* Output (up to 24 bits  /  768KHz) (DoP256)
• AES / EBU Output (up to 24 bits  /  768KHz) (DoP256)

ESPECIFICACIONES TECNICAS

• Optical Sampling Rates Converter (SRC) : 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
  192KHz, DoP64
• Coaxial Sampling Rates Converter (SRC) : 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
  192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
• HDMI I2S Sampling Rates Converter (SRC) : 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
  192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
• AES / EBU Sampling Rates Converter (SRC) : 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz,
  192KHz, 352.8KHZ, 384KHz, 705KHZ, 768KHZ, DoP64, DoP128, DoP256
• Bit Resolution : 24-bits
• Dimensions : 235 mm W x 260 mm D x 55 mm H (including feet). The CD transport is 20.5mm from the edge of the case.
• Weight : 3Kg
• AC Fuse : Slow-blow, 1A, 250VA
• Worldwide AC voltage : 100VAC~240VAC
